Liebisch desk type units are supplied with 300 litre test chamber volume. They are used for condensation water tests with or without pollution gas (e.g. DIN EN ISO 6270-2, DIN 50018). Options are available to meet customer test requirements.

Accessories / options

Functional diagram

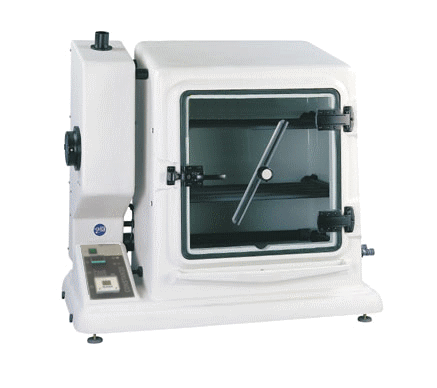

KB 300

Constanzo®

These units are available with or without automatic ventilation. With the automatic ventilation the user needn’t open the test chamber door during ventilation periods. Ambient air passes through the test chamber. The test chamber temperature range is max. 50°C, the increased operating temperature system (EA) allows a temperature of up to 60°C.

For performing corrosion tests with Sulphur dioxide (e.g. DIN 50018 or DIN EN ISO 6988) we recommend our Gasomat gas dosing system.

Gasomat

With this unit the required volume of gas is dosed into the test chamber. This manually operated accessory doses gas accuratery via a replacement fluid system. Gas is supplied from a several gas cylinder.

KB 300 with Gasomat and SO₂ -  small steel bottle
